ESPO Fault Device

Description

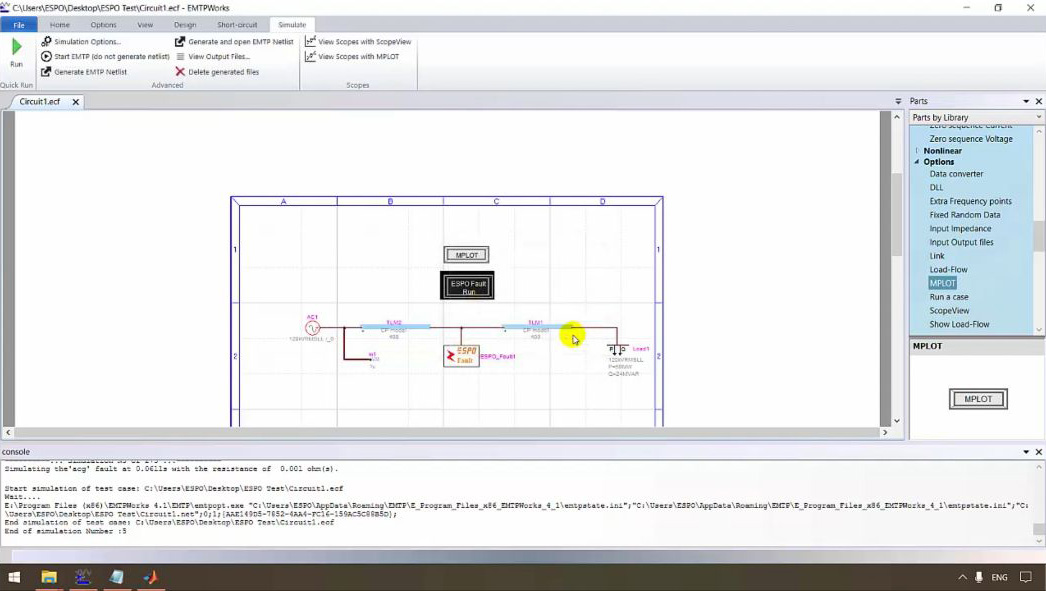

This application is an extension of the EMTP-RV program to allow you to have iterative runs of fault conditions in power systems with one click. It receives fault parameters (e.g., type, resistance, inception time) to simulate all desired cases and save the desired output signals (e.g., voltage, current) based on these cases. In addition, you can choose the output file type and control the process (i.e., stop, pause) using the provided controller application.

Note: This product is tested on EMTP-RV, version 4.1 and won’t work on lower versions of the program.
